Ceiling inlets > Horizontal ceiling inlet

Horizontal ceiling inlet

Ceiling inlets

View more photos
Manual HPI ENG Ask your question via our contact page
Poultry
Pigs
Calves
Other

Benefits of Horizontal ceiling inlet

Ideal for classic ceiling ventilation

Perfectly insulated

Optimal ventilating effect

Available in any size

Common models

Type Installation dimensions Net surface Capacity Hole sizes
L W D 10 Pa 20 Pa 30 Pa B H
PLAFH4000 400 mm 620 mm 200 mm 1950 cm2 2800 (m3/hr) 4000 (m3/hr) 4900 (m3/hr) 626 mm 406 mm
PLAFH5000 400 mm 770 mm 200 mm 2350 cm2 3600 (m3/hr) 5000 (m3/hr) 6200 (m3/hr) 776 mm 406 mm
PLAFTE5000 320 mm 940 mm 550 mm 2350 cm2 3600 (m3/hr) 5000 (m3/hr) 6200 (m3/hr) 946 mm 326 mm
PLAFTD11000* 696 mm 1200 mm 400 mm 5400 cm2 8000 (m3/hr) 11000 (m3/hr) 14000 (m3/hr) 1206 mm 702 mm

The ideal ceiling inlet for classic ceiling insulation

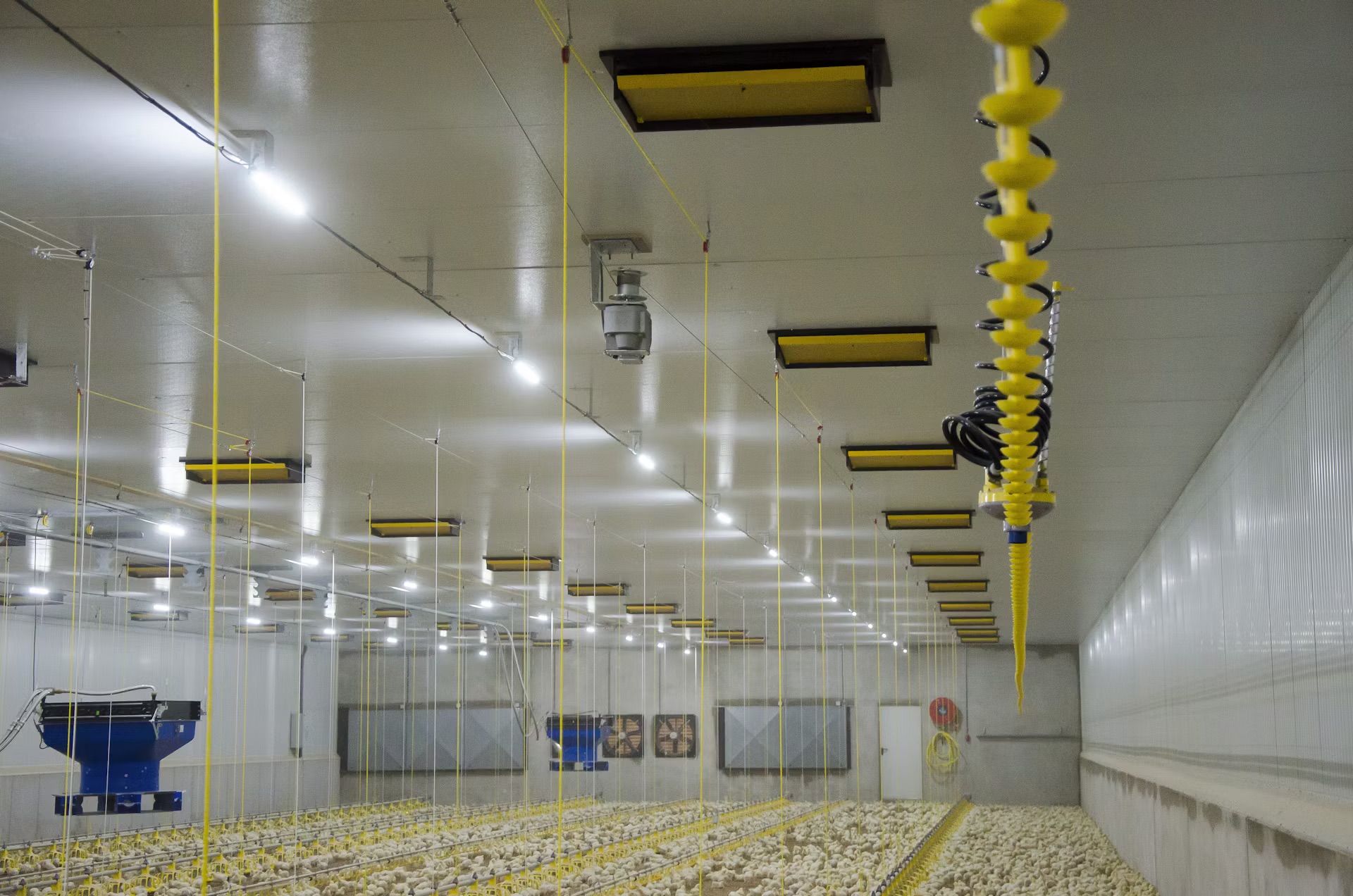

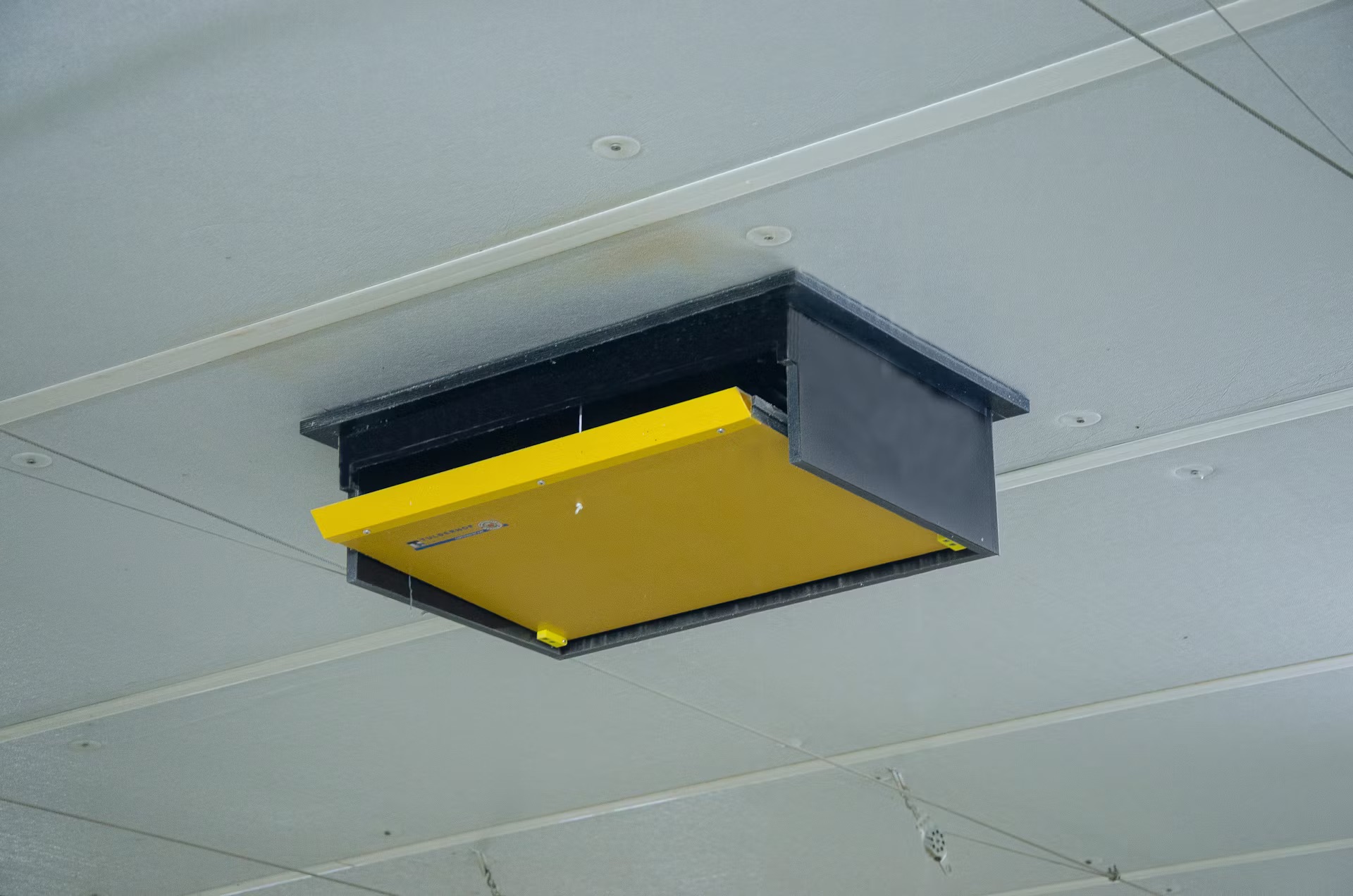

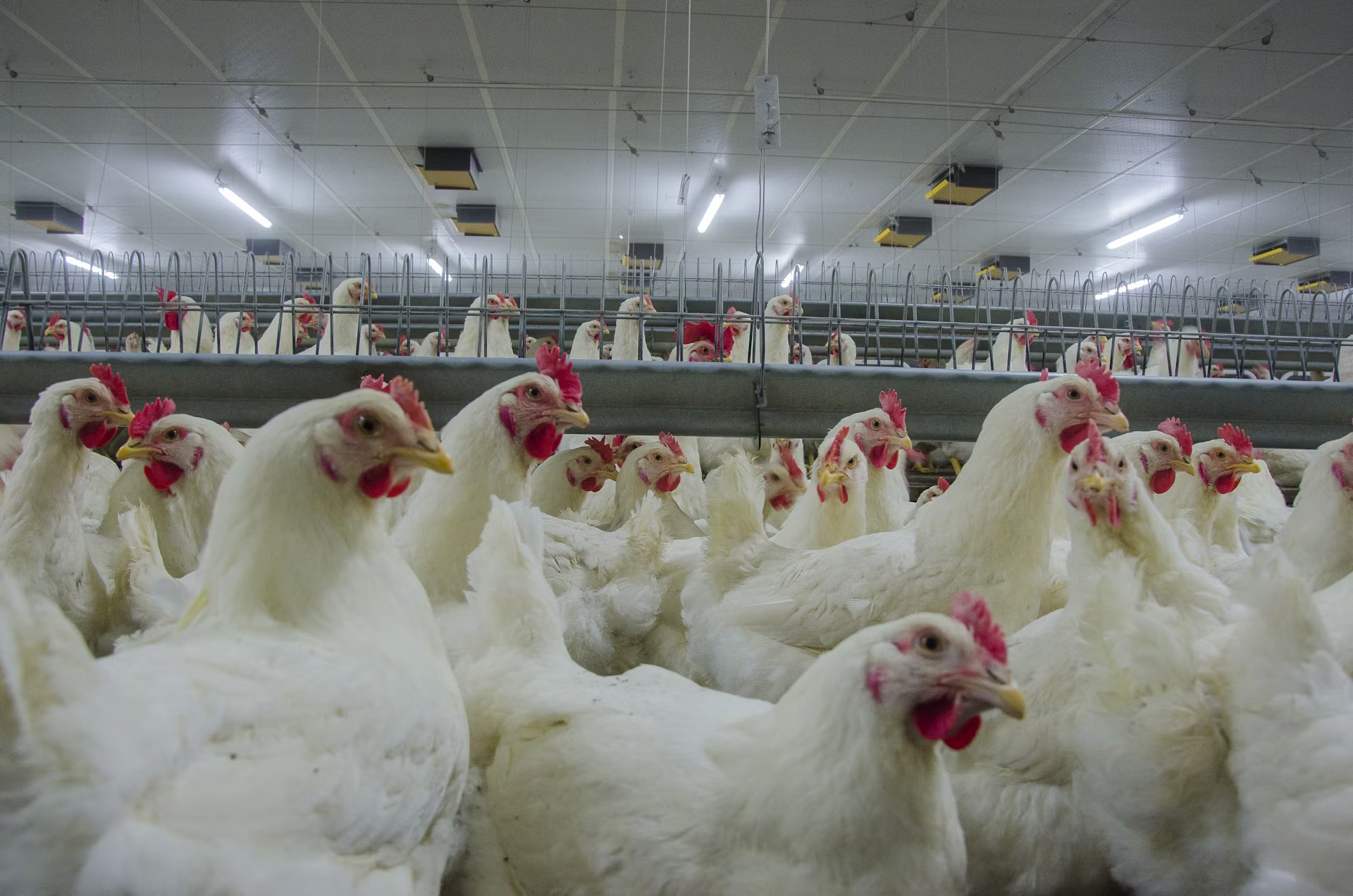

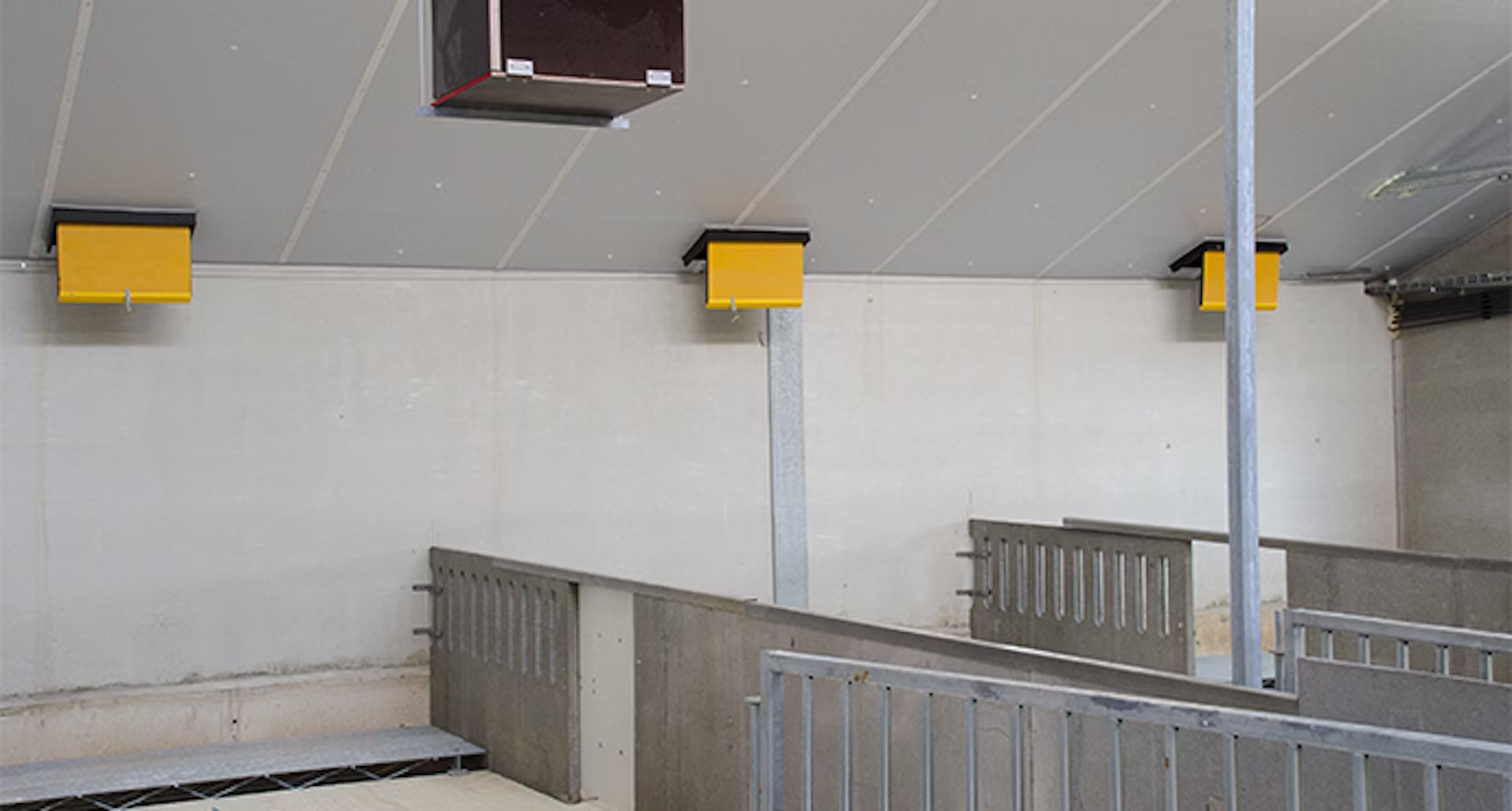

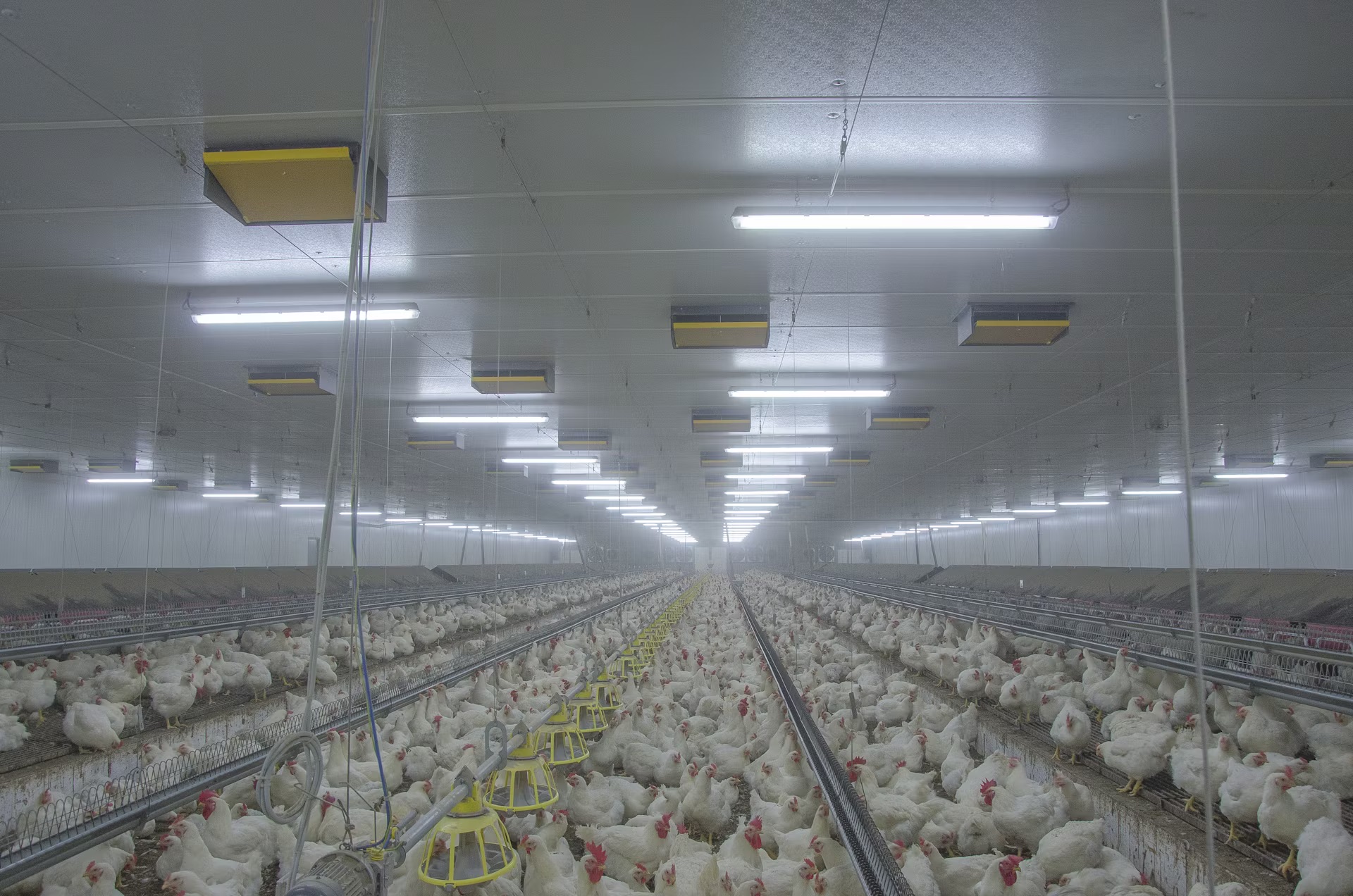

The horizontal ceiling inlet is a simple hinged vent. The inlet extends 10 cm below the ceiling and can send air horizontally with minimum ventilation. As the vent opens further, the air is sent more and more to the ground. The vent is well insulated and available in any size. The horizontal ceiling air inlet is the ideal vent for classic ceiling ventilation.
